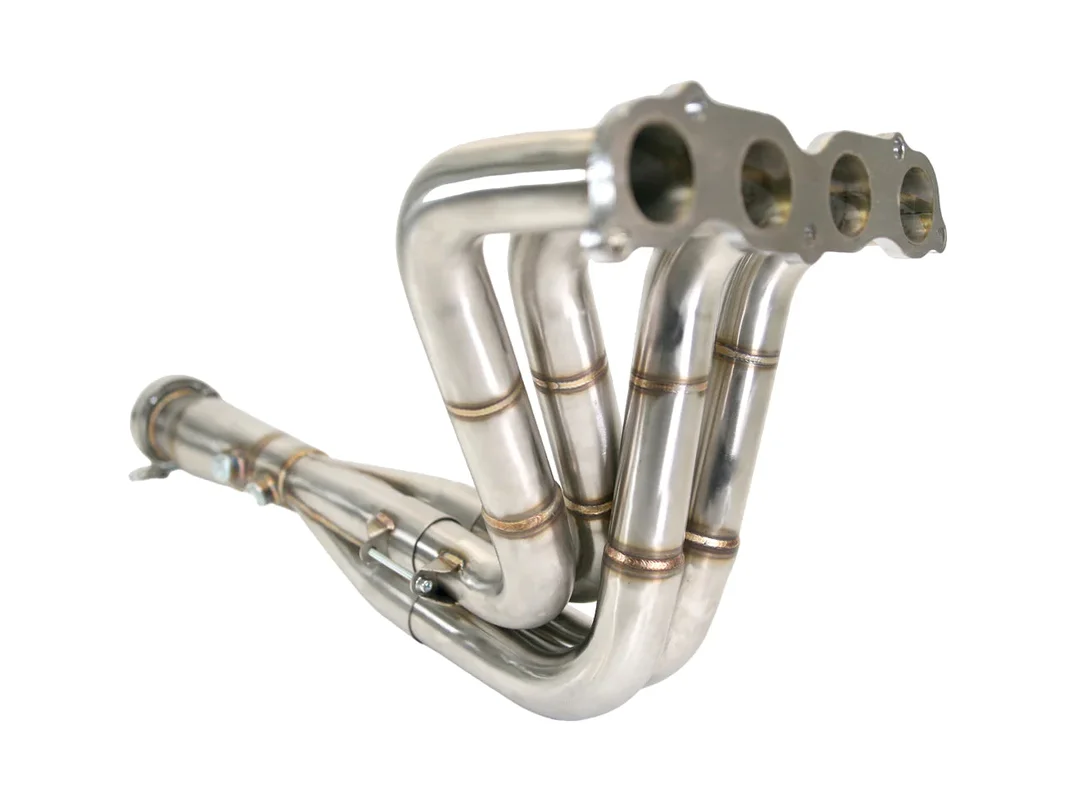

BLOX Racing Max-Flo Honda B-series 4-2-2-1 Tri-Y Exhaust Header

Description

Part #: bloBXEX-00501

BLOX Racing Max-Flo [commonly referred to as ‘big tube’] exhaust headers are specifically intended for Honda B-series with high compression 1.8L set-ups and other builds between 2.0L-2.2L in displacement. Max-Flo exhaust headers are 2-piece and feature a 4-2-1 (Tri-Y) design using innovative stepped exhaust tubing, which are larger when compared to its Hi-Flo little brother.

T304 is used to construct these stainless steel headers, including T304 cylinder head and collector flanges. All headers are expertly TIG-welded to ensure durability and reliability.  Spent exhaust gases exit through true 2.5″ exhaust collectors.

BLOX Racing Max-Flo headers are designed to widen midrange power and take advantage of peak horsepower.

FOR OFF ROAD USE ONLY

T304 HI-FLOW HEADER SPECS

• T304 stainless steel
• Madrel-bent, TIG-welded
• 10mm thick cylinder head flange
• 8mm thick collector flange
• 2-piece, includes header springs
• 4-2-1 Tri-Y design
• Step-up Piping sizes (OD):
  45mm – 50mm – 55mm
• 63.5mm (2.5″) Collector outlet
