Description
CRS6125O3DL19
Torque to 79 ft-lbs, ARP moly lube ONLY!

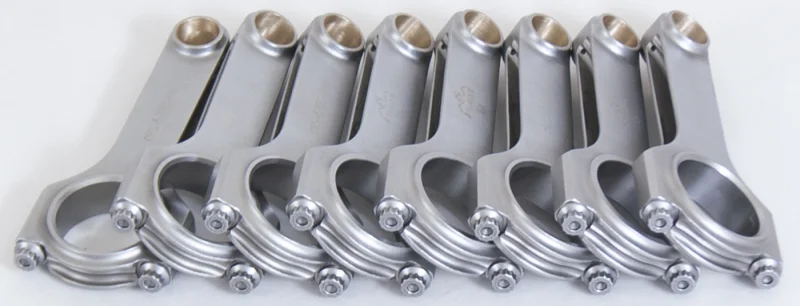

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP L19 bolts for the ultimate in power-handling capability. Recommended for competition use.
Highlights:
- bolts: 7/16″ ARP L19
- material: forged 4340 steel
- center to center length: 6.125″
- pin size: 0.927″
- pin end width: 1.06″
- rod journal: 2.1″
- housing bore: 2.225″
- big end width: 0.94″
- typical weight: 620g
- bushed for full-floating piston pin
FORGED 4340 STEEL H-BEAM RODS – CHEVROLET LS, 6.125″ LENGTH, .927″ PIN, ARP L19 BOLTS
· Chevrolet » 4.8 / 5.3 LS, 24T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » 4.8 / 5.3 LS, 58T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS7 (4.125″ standard bore), 24T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS3 (4.065″ standard bore), 58T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS2 (4.000″ standard bore), 58T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS3 (4.065″ standard bore), 24T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS2 (4.000″ standard bore), 24T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS7 (4.125″ standard bore), 58T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS9 » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS1 (3.898″ standard bore), 58T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
· Chevrolet » LS1 (3.898″ standard bore), 24T » Connecting Rods » 4340 Forged Steel H-Beam » 6.125″ length » 2.1″ rod journals
